Automatic Balers, Made in Italy
INDUSTRIAL AUTOMATIC METAL BALERS
Designed FOR Your Material & Workflow

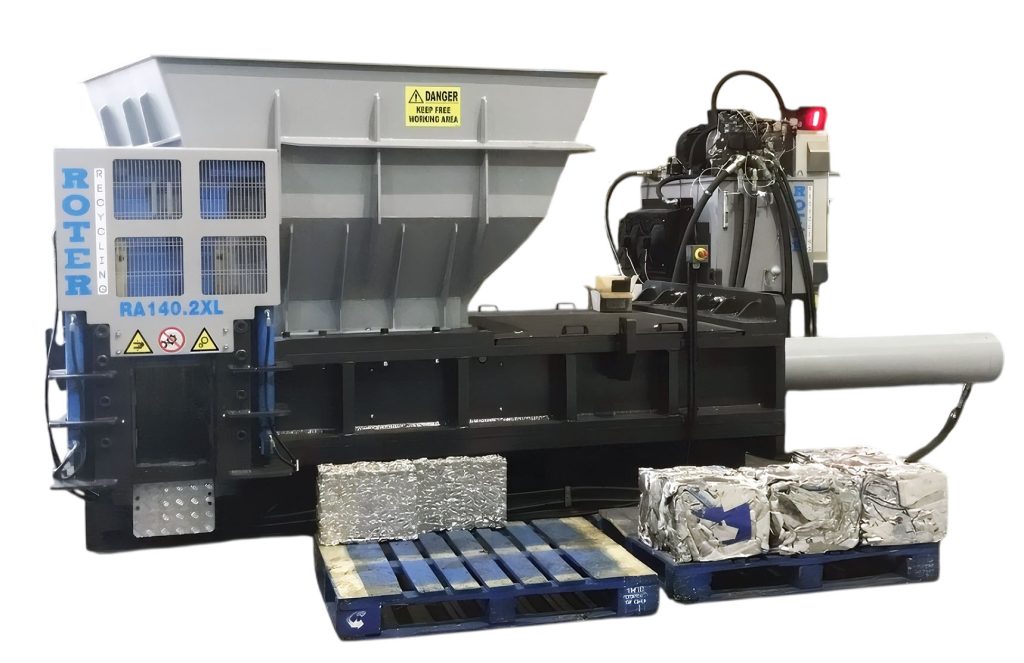

RA Automatic Balers
Continuous scrap handling with predictable output built for industrial workflows.
RA Automatic Balers are designed for operations that need stable throughput, repeatable bale output and a solution that fits structured industrial environments. Configure around your feeding method and integration needs to improve internal logistics and downstream efficiency.
Sales highlights
- Predictable output for consistent handling and transport
- Continuous operation aligned to industrial rhythms
- Compact footprint (where applicable) to fit site constraints
- Reduced civil works / no civil works (where applicable)
- Long-term reliability supported by commissioning, remote assistance and spare parts
Technical highlights (overview)
- Designed for continuous feeding and repeatable output
- Control and automation-ready architecture (final spec by configuration)
- Maintainability-focused design to protect uptime
Options & configurations
Final configuration depends on material type, feeding method and throughput targets. Typical options include:
– Feeding and integration points (conveyor / line integration)
– Bale size / output format selection
– Automation and control preferences
– Safety and operator workflow adaptations
Utilities
(Confirm during technical consultation)
- Electrical supply requirements
- Hydraulic system requirements
- Compressed air (if applicable)
Installation requirements
- Site layout review to confirm footprint, access and integration
- Civil works requirements confirmed by configuration (often minimised)
- Commissioning plan and operator training available
Technical Data – Automatic Baler (RA Series)
| Specification | RA70.1 | RA90.2 | RA140.2 | RA140.2H | RA140.2XL |
|---|---|---|---|---|---|
| Bale Size (mm) | 400 x 300 | 300 x 300 | 300 x 400 | 220 x 220 | 300 x 400 |
| Loading Box (mm) | 1300 x 400 | 1300 x 600 | 1400 x 800 | 1000 x 550 | 1330 x 1100 |
| Cutting Force (ton) | 70 | 70 | 140 | 140 | 140 |
| Main Cylinder Force (ton) | 70 | 90 | 140 | 140 | 140 |
| Pressure on Material (kg/cm²) | 58 | 107 | 117 | 350 | 117 |
| Working Pressure (bar) | 280 | 280 | 280 | 280 | 280 |
| Electric Motor Power (kW) | 18.5 | 22 | 45 | 45 | 45 |
| Bales per Hour (max) | 80 | 90 | 90 | 90 | 90 |
| Capacity AI (ton/h) | 0.6 | 1.2 | 3.5 | 1.6 | 3.5 |
| Capacity FE (ton/h) | 1 | 2 | 6 | 2.2 | 6 |
* Productivity depends on material type and feeding mode.
FIELDS OF APPLICATION
Different sectors require different answers: throughput, bale density, safety, automation, energy efficiency and compliance. Roter(R.F. Srl) designs solutions that match your operational reality, so you can process more, waste less and stay in control. See the full scrap metal baler range, including the RR715.6 shear baler.
best for ...
- Industrial and steel plants with continuous scrap flows
- Manufacturing sites aiming to reduce scrap volume and improve internal logistics
- Operations requiring integration into structured workflows
