Scrap Metal Balers, Made in Italy
Heavy-Duty Scrap Metal Baler
Built for Continuous Production
RR5 / RR6
Balers
CE Certified · 30+ Years Engineering Heritage · On-Site Installation Included · Global Spare Parts Supply
The Roter RR5 and RR6 are heavy-duty scrap metal balers engineered for continuous operation in car wreckers’ yards, demolition sites, scrap metal facilities, and steel works. Producing high-density bales from all ferrous and non-ferrous metals, both models are available in fixed, semi-mobile, and roll-on/off configurations to match your site layout and throughput requirements. Manufactured at our 21,000 sqm facility in Ferrara, Italy, each machine ships with full CE documentation, operator training, and lifetime technical support — the complete package for operators who cannot afford downtime.
High-density bales. Fast installation. Built for long-term uptime.
RR5 / RR6 are heavy-duty balers engineered for demanding scrap operations where density and reliability drive profit. Configure the machine around your material flow and output targets, and reduce transport costs with consistent, high-density bales.
Sales highlights
- Higher density = lower transport cost per tonne
- Fast installation to reduce time-to-production
- No foundation (where applicable) to minimise civil works
- Robust design for harsh, high-load environments
- Service-led approach: commissioning, remote assistance, spare parts, overhaul
Technical highlights (overview)
- Heavy-duty structure designed for continuous industrial use
- Output designed for consistent handling, storage and transport
- Maintainability-focused layout to protect uptime
Options & configurations
Final configuration depends on material type, feeding method and targets. Typical options include:
– Bale size / output format selection
– Feeding workflow configuration (loader / conveyor)
– Automation and control preferences
– Safety and operator workflow adaptations
– Application-specific wear protection and durability choices
Utilities
(Confirm during technical consultation)
- Electrical supply requirements
- Hydraulic system requirements
- Compressed air (if applicable)
Installation requirements
- Civil works: no foundation (where applicable)
- Space and access requirements defined during layout review
- Commissioning plan and operator training available

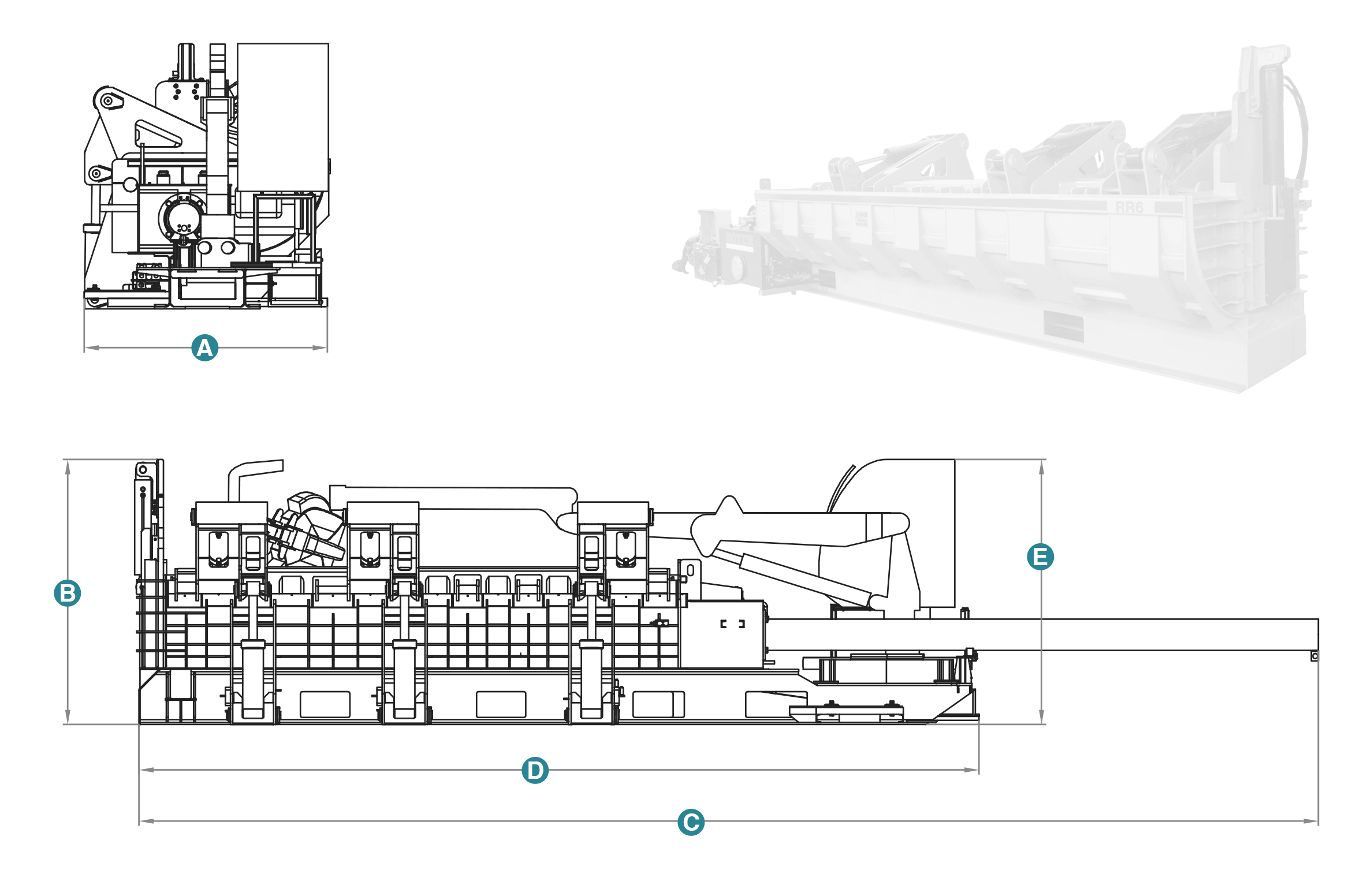

(A)WIDTH = 2400 MM
(B,E) HEIGHT = 2750 MM
(C) WORKING DIMENSION = 8300/9300 MM
(D) TRANSPORT LENGTH = 11600/13600 MM
RR5 / RR6 Technical Specifications
| Specification | RR5 | RR6 |
|---|---|---|
| Box Material | HARDOX 400/450 | HARDOX 400/450 |
| Box Length (mm) | 5000 | 6000 |
| Opened Box Width (mm) | 1850 | 1850 |
| Cylinders per Lid | 3 | 3 |
| Lid Force (tons) | 200 | 200 |
| Main Cylinder Force (tons) | 155 | 155 |
| Bale Size (mm) | 880 x 650 | 880 x 650 |
| Oil Circuit Capacity (lt) | 800 | 800 |
| Diesel Tank Capacity (lt) | 90 | 90 |
| Engine Power (kW) | 55 / 75 | 55 / 75 |
| Working Pressure (bar) | 280 | 280 |
| Production Capacity – Scrap Metal (ton/h) | 8 – 14 | 8 – 14 |
| Production Capacity – Vehicle Scrap (ton/h) | 15 – 20 | 15 – 20 |
| Weight (ton) | 21 | 22 |
Standard Equipment on Every RR Series Baler
| Main Pump | Parker PV Plus Series |
| Diesel Engine | PERKINS or CAT |
| Electric Engine | 75 kW |
| Display | Touch screen 7″ or 10″ |
| Radio Control | Included |
| Signal System | Light & Sound |
Optional Configurations and Add-Ons
| HS | Electric Motor 90kW |
| G | Grapple with Rotor (250/280/300 lts) |
| CC | Cabin Air Conditioner |
| OH | Preheated Hydraulic Oil |
| EH | Preheated Engine |
| AG | Automatic Grease System |
| LS | Liquid Collection Tank |
| RC | Remote Control |
| CCL | Customised Colour |
| KE | Emergency Spare Parts Kit |
Operating Cycles and Working Programmes
| Program | Dense Bale |
| Program | Bale for Mills |
Industries and Applications for the RR Series
Different sectors require different answers: throughput, bale density, safety, automation, energy efficiency and compliance. Roter(R.F. Srl) designs solutions that match your operational reality, so you can process more, waste less and stay in control.
best for ...
- Recycling yards handling bulky and mixed ferrous scrap
- Mixed scrap streams requiring consistent bale output
- Sites needing quick deployment with simplified civil works
