Shear Balers
INDUSTRIAL HEAVY DUTY METAL SHEAR BALERS
BUILT TO COMPRESS. DESIGNED TO ENDURE
SHEAR BALER
rr SERIES
Description
DRAWINGS
TECHNICAL DATA
Description
A heavy-duty shear baler engineered and made in Italy to deliver reliable compaction and cutting performance-built for tough working conditions, high-density output and long-term uptime.
Unique advantages (RR Shear Series)
- Built for tough working conditions and very long lifespan
- Industrial, robust and flexible design
- Processes a wide range of metals and steels
- Top-quality components for long-term profitability
- Fast and efficient after-sales service
- Spare parts available in stock
- Semi-mobile design: no foundation required
- Fast installation: ready to work in only a few hours
- Troubleshooting assistance system with alarm auto-diagnostics and guided procedures
- Every component is easy to access for maintenance
- Extremely customisable to scrap yard production needs
- PLC protected from power surges via stabilised power supply
- Safety Engine Auto Stop in case of malfunctions/alarms that could compromise safety
Working programmes
- Dense Bale
- Bale for Mills
- Shear
- Shear with pre-compression
Standard features
- Main pump: Parker PV Plus Series
- Diesel engine: Perkins / Caterpillar*according to countries pollution regulations
- PLC: Siemens S7-300
- HMI: Touch Screen 7”
- Remote control: Autec M Series
- Automatic lubrication systems (shear and hold-down lubrication)
Options
- Preload table
- Crane with cabin
- Grapple with rotator (250/280/300 L)
- Operator cabin (heating / air conditioning)
- Preheating hydraulic oil
- Preheating engine
- Customised colour
- Manuals in different languages

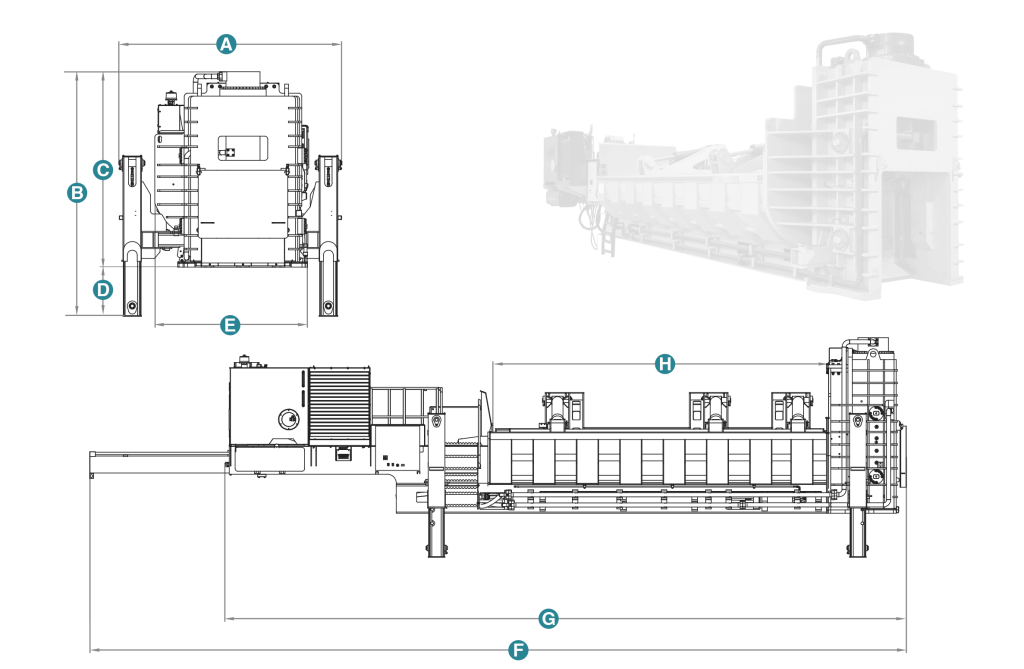

DRAWINGS
(A) WORKING DIMENSION = 3600 MM
(B) HEIGHT = 3960 MM
(C) HEIGHT WITHOUT EXTENSION = 3160 MM
(D) SUPPORT LEG HEIGHT = 800 MM
(E) TRANSPORT WIDTH = 2460 MM
(F) WORKING DIMENSION = 14700 MM (13700 MM)
(G) TRANSPORT DIMENSION = 12250 MM (11250 MM)
(H) BOX = 6000 MM (5000 MM)
TECHNICAL DATA
RR Shear Baler Technical Specifications
| Specification | RR550.5 | RR550.6 | RR715.6 |
|---|---|---|---|
| Shear Force (tons) | 550 | 550 | 715 |
| Hold-Down Force (tons) | 120 | 120 | 120 |
| Box Material | HARDOX 440/450 | HARDOX 400/450 | HARDOX 400/450 |
| Box Length (mm) | 5000 | 6000 | 6000 |
| Opened Box Width (mm) | 1600 | 1600 | 1600 |
| Cylinders per Lid | 3 | 3 | 3 |
| Lid Force (tons) | 200 | 200 | 200 |
| Main Cylinder Force (tons) | 155 | 155 | 155 |
| Bale Size (mm) | 880 x 650 | 880 x 650 | 880 x 650 |
| Oil Circuit Capacity (lt) | 1600 | 1600 | 1600 |
| Diesel Tank Capacity (lt) | 250 | 250 | 250 |
| Engine Power (hp/kW) | 225 / 168 | 225 / 168 | 225 / 168 |
| Shear Lubrication | Automatic | Automatic | Automatic |
| Hold Down Lubrication | Automatic | Automatic | Automatic |
| Cuts per Minute | 3.5 | 3.5 | 3.5 |
| Min Cutting Length (mm) | 150 | 150 | 150 |
| Working Pressure (bar) | 280 / 320 | 280 / 320 | 280 / 320 |
| Weight (tons) | 42 | 44 | 45 |
Standard Equipment on Every RR Series Shear Baler
| Main Pump | Parker PV Plus Series |
| Diesel Engine | PERKINS or CAT |
| Display | Touch screen 7″ or 10″ |
| Radio Control | Included |
| Signal System | Light & Sound |
Optional Configurations and Add-Ons
| LL | Hydraulic Lifting Legs |
| PT | Preloading |
| OH | Preheated Hydraulic Oil |
| EH | Preheated Engine |
| KE | Emergency Spare Parts Kit |
| CCL | Customised Colour |
Operating Cycles and Working Programmes
| Program | Dense Bale |
| Program | Bale for Mills |
| Program | Shear |
| Program | Shear with Pre-compression |
FIELDS OF APPLICATION
Different sectors require different answers: throughput, bale density, safety, automation, energy efficiency and compliance. Roter(R.F. Srl) designs solutions that match your operational reality, so you can process more, waste less and stay in control.
best for ...
- Recycling yards handling bulky and mixed ferrous scrap
- Operations where size reduction improves handling and output consistency
- High-volume sites prioritising uptime and safety
